Nussbaum Transportation

Hudson, IL
nussbaum office area f9955690
nussbaum back 23dba2b6
nussbaum break room 31279fe8
nussbaum front entrance side view d3dea6a4
nussbaum truck fleet 52ab5f01
nussbaum trucks ce9a1c54
nussbaum truck waiting room 52b73205
nussbaum mechanical room 1488b4be

Project Details

construction new 5212a03d
New Construction
loop vertical 8d93530d
Vertical Loop
system combo ac86b138
Combination
dimensions cda9e049
31000 sq. ft.

Project Description

Nussbaum Transportation is a trucking company based in Illinois that has been in business for over 70 years. In 2013, Nussbaum constructed a new corporate campus including a state-of-the-art maintenance building and a corporate office building. Some of the driver amenities in their new headquarters include private shower rooms and an inviting and comfortable driver lounge. The campus also features a peaceful pond and a walking path. The office interior replicates a western lodge design with wood trussing and floors, stone pillars, large windows, and mahogany doors.

Installation Details

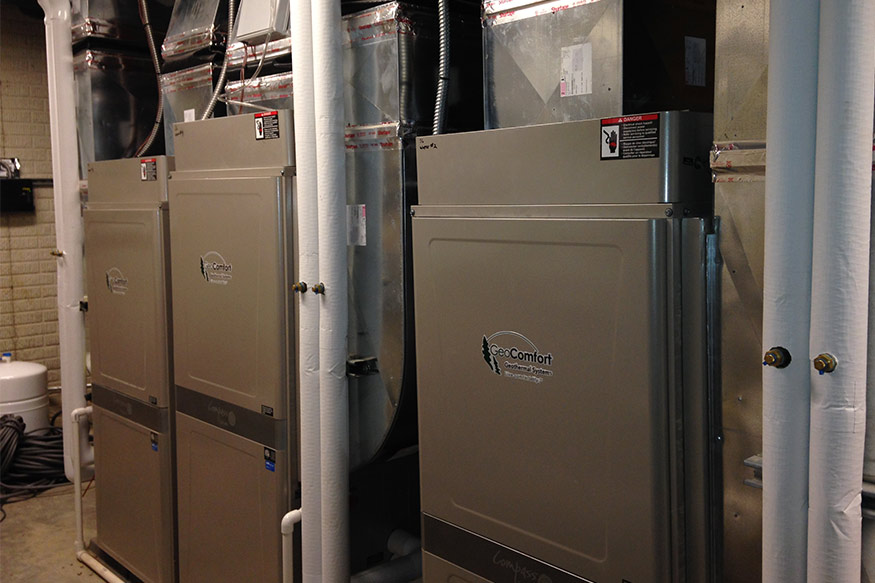

In the maintenance building, two 10-ton water-to-water units are used for radiant floor heat, a 3-ton multi-positional vertical packaged unit is used for the small office and locker room, and a 6-ton multi-positional vertical packaged unit for 2nd-floor driver lounge and break room. In the office building, there are 11 radiant and 11 forced air zones, powered by four Compass series combination units (19 tons total) for forced air cooling and hot water for radiant floor heat; three multi-positional vertical packaged units (15 tons total) for the remaining cooling load.

Savings

30% – 70% annual savings on heating and cooling costs.

Partners Involved

Bratcher Heating, A/C, Geothermal
