Magic Chef Mansion

St. Louis, MO
mcm exterior 3fd85e82

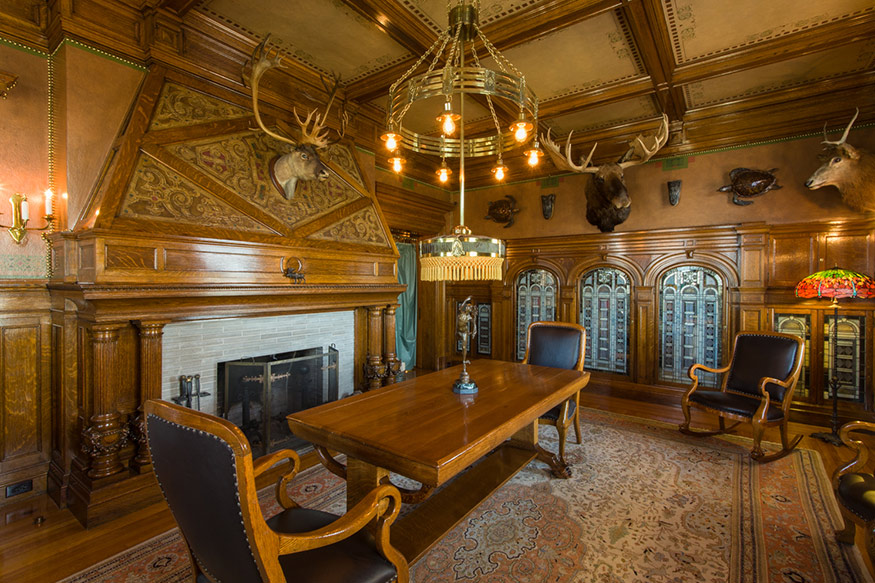

mcm dining room efc84984

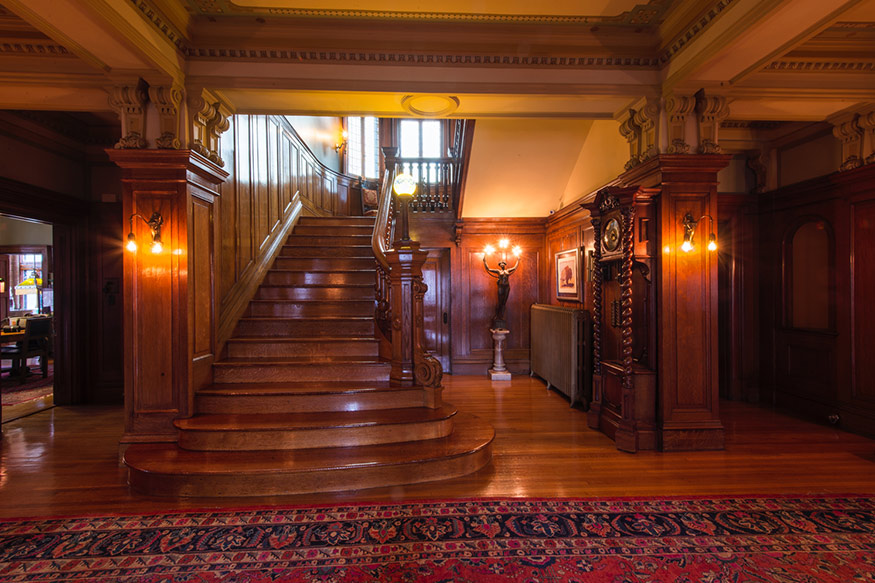

mcm entryway 773d2360

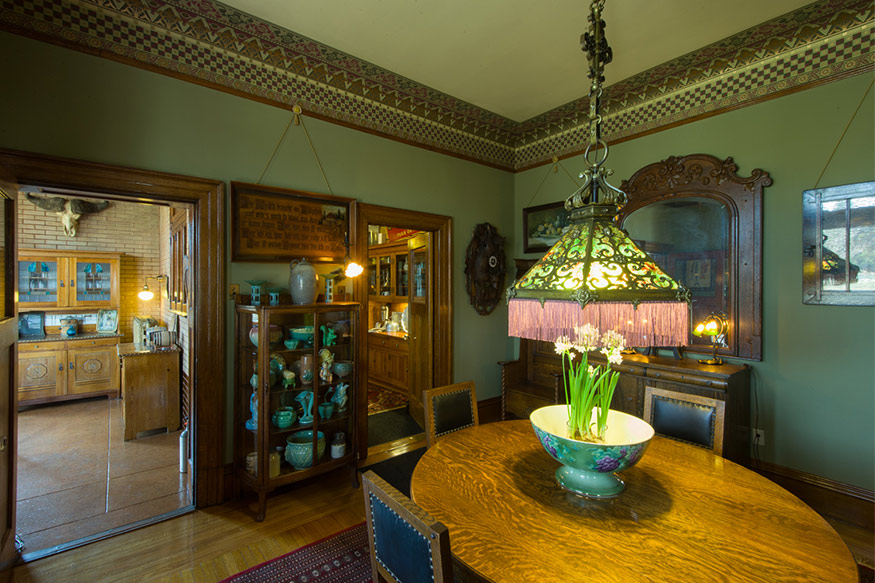

mcm kitchen cb6b330c

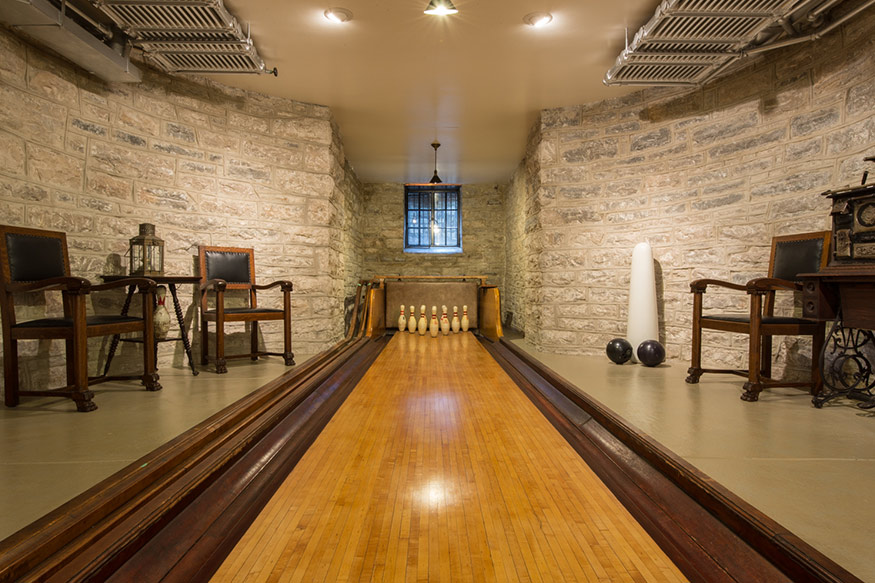

mcm bowling alley 01a469ff

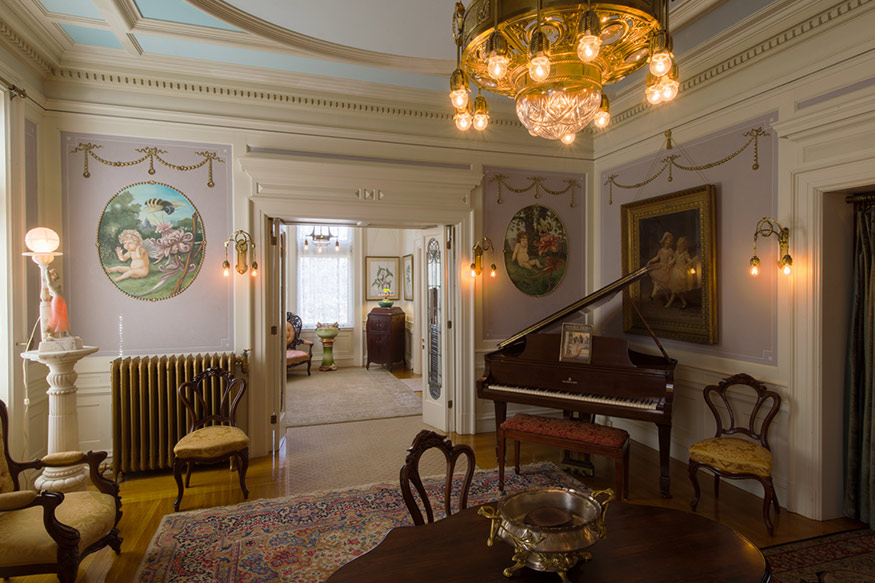

mcm piano room 0fe8bc5f

Project Details

construction retrofit 5433dc93
Retrofit
loop vertical 8d93530d
Vertical Loop
system forced air 3c8e2238
Forced Air
dimensions cda9e049
12,000 sq. ft.

Project Description

The Magic Chef Mansion was designed by Ernst Janssen for the founder of the Quick Meal & Magic Chef Stove Company, Charles Stockstrom, in 1908. It has more than 30 rooms, plus a 70-foot-long bowling alley on the lower level that is original to the home. By the time the current owners purchased it in 1990, the Magic Chef Mansion had fallen into disrepair. They quickly began renovating and restoring the home back to its original glory. It is open for public tours and is frequently rented out for parties, showers, tea parties, fundraisers, and weddings. Photos courtesy of Magic Chef Mansion, LLC.

Installation Details

The first floor features a 4-ton Compass Series Vertical Packaged System, and a 6-ton Compass Series Vertical Packaged System. The second and third floors feature a 5-ton Compass Series Indoor Split System with MPD060 and zone control for second and third floor west; and a 6-ton Compass Series Indoor Split System with MPD072 and zone control for second and third floor east. There are six zones in total. The loop field is a 22-ton vertical bore loop field.

Equipment Installed

Savings

30% – 70% annually on heating and cooling costs.

Partners Involved

West County Heating & Cooling

Magic Chef Mansion
