ZS/ZT - GeoComfort by Enertech

ZS/ZT | Compact Horizontal Packaged

GeoComfort ZSZT Unit EPIC Connected Controls

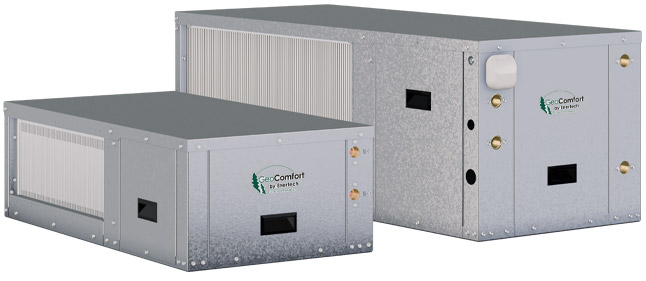

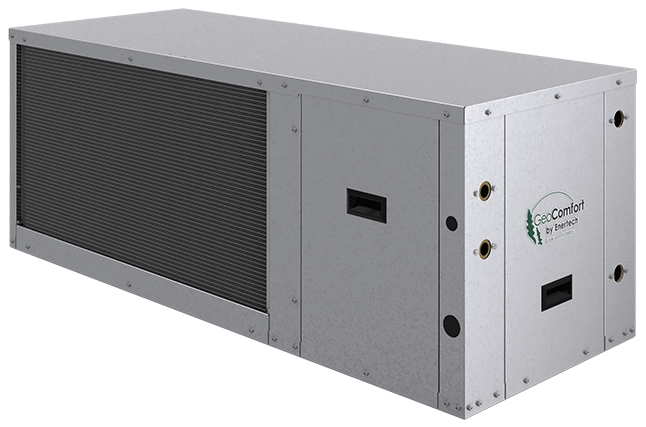

The GeoComfort ZS/ZT compact horizontal packaged heat pumps are small and versatile, fitting between standard 24″ trussing. The small size of these heat pumps makes them perfect for replacing older water-source heat pumps. These models come standard with hot water assist for 25%–40% savings on hot water costs annually. As a lighter unit with high efficiencies, these systems are ideal for new and existing homes of all sizes, net-zero projects, storage buildings, and more.

OPTIONAL EPIC CONNECTED CONTROLS (ZT)

Our proprietary factory-installed EPIC connected controls provide unprecedented insights into the usage, efficiency, and performance of your ZT geothermal system – all in real time! See how to maximize your home’s comfort with EPIC.

More About EPIC Connected Controls

Warranty Details

FEATURES

Available sizes: 0.5–6 tons
Efficiencies: Up to 26.6 EER / 4.3 COP
Hot water assist
UL GREENGUARD Gold certified cabinet insulation
Heavy gauge steel
Single- and two-stage compressor options
Variable-speed fan
Temperature system as part of system safeties
All-aluminum microchannel air coil

Learn More

Document Downloads:

Model Specifications:

Model	ZS006*
CAPACITY	ZS006*	Full Load	Part Load
COOLING BTU/HR	6,300	–
COOLING EER	16.6	–
HEATING BTU/HR	4,700	–
HEATING COP	3.3	–

Model	ZS009
CAPACITY	ZS009	Full Load	Part Load
COOLING BTU/HR	9,200	–
COOLING EER	15.9	–
HEATING BTU/HR	7,300	–
HEATING COP	3.5	–

MODEL	ZS012
CAPACITY	ZS012	Full Load	Part Load
COOLING BTU/HR	11,300	–
COOLING EER	14.1	–
HEATING BTU/HR	9,500	–
HEATING COP	3.2	–

MODEL	ZS015
CAPACITY	ZS015	Full Load	Part Load
COOLING BTU/HR	14,200	–
COOLING EER	17.6	–
HEATING BTU/HR	11,200	–
HEATING COP	3.9	–

MODEL	ZS017
CAPACITY	ZS017	Full Load	Part Load
COOLING BTU/HR	16,600	–
COOLING EER	16.3	–
HEATING BTU/HR	12,500	–
HEATING COP	3.4	–

MODEL	ZS018
CAPACITY	ZS018	Full Load	Part Load
COOLING BTU/HR	20,100	–
COOLING EER	18.7	–
HEATING BTU/HR	14,100	–
HEATING COP	3.7	–

MODEL	ZT024
CAPACITY	ZT024	Full Load	Part Load
COOLING BTU/HR	26,400	20,000
COOLING EER	18.3	25.0
HEATING BTU/HR	18,300	14,500
HEATING COP	3.9	4.1

MODEL	ZT030
CAPACITY	ZT030	Full Load	Part Load
COOLING BTU/HR	31,500	23,900
COOLING EER	17.5	22.7
HEATING BTU/HR	23,300	19,300
HEATING COP	3.7	4.0

MODEL	ZT036
CAPACITY	ZT036	Full Load	Part Load
COOLING BTU/HR	36,700	28,100
COOLING EER	17.9	26.6
HEATING BTU/HR	27,100	22,000
HEATING COP	3.8	4.3

MODEL	ZT042
CAPACITY	ZT042	Full Load	Part Load
COOLING BTU/HR	43,000	33,500
COOLING EER	18.0	25.3
HEATING BTU/HR	32,900	26,400
HEATING COP	3.6	4.1

MODEL	ZT048
CAPACITY	ZT048	Full Load	Part Load
COOLING BTU/HR	48,700	38,000
COOLING EER	17.3	24.4
HEATING BTU/HR	36,900	29,300
HEATING COP	3.6	4.1

MODEL	ZT060
CAPACITY	ZT060	Full Load	Part Load
COOLING BTU/HR	59,000	45,800
COOLING EER	16.9	23.7
HEATING BTU/HR	46,800	36,400
HEATING COP	3.6	4.0

MODEL	ZT072
CAPACITY	ZT072	Full Load	Part Load
COOLING BTU/HR	69,500	56,000
COOLING EER	15.6	21.3
HEATING BTU/HR	55,500	44,400
HEATING COP	3.4	3.8
