VS/VT | Compact Vertical Packaged

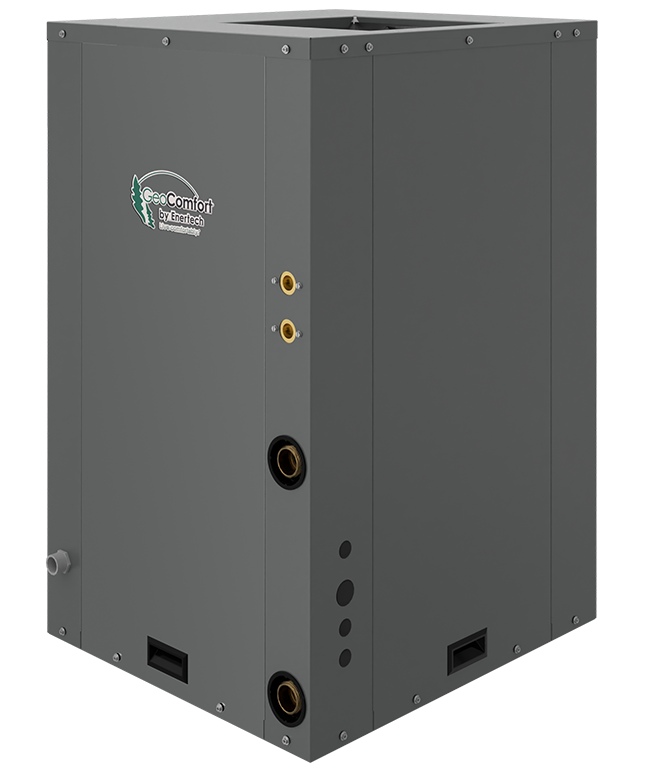

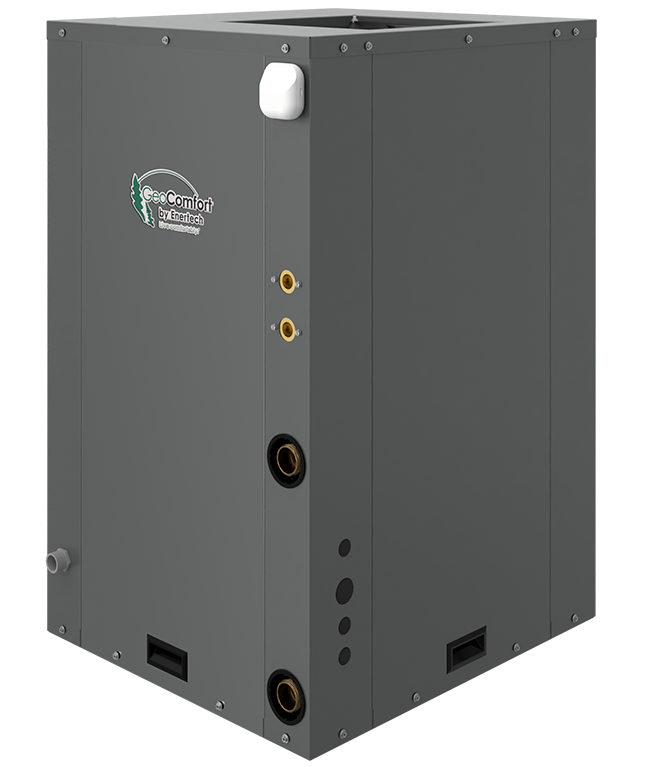

GeoComfort VSVT Unit EPIC Connected Controls

The GeoComfort VS/VT compact, vertical packaged heat pumps are perfectly suited for applications that require ducted, forced air heating and cooling. These units fit well in tight spaces and come standard with hot water assist for up to 40% cost savings on water heating annually. The VS/VT is a smaller version of the YT, and these models are ideal for homes of any size, net-zero buildings, and more.

OPTIONAL EPIC

Our proprietary factory-installed EPIC provides unprecedented insights into the usage, efficiency, and performance of your VS015-018 and VT geothermal systems – all in real time! See how to maximize your home’s comfort with EPIC.

Learn More About EPIC

Warranty Details

FEATURES

Optional EPIC system monitoring and diagnostics
Available sizes: 0.5–6 tons
Efficiencies: Up to 26.6 EER / 4.6 COP
Hot water assist
UL GREENGUARD Gold certified cabinet insulation
Heavy gauge steel
Single- and two-stage compressor options
Variable-speed fan standard on VT and optional on VS
Temperature sensor as part of system safeties
All-aluminum microchannel air coil

Learn More

Document Downloads:

Performance Data (Ground Loop):

MODEL	VS006
CAPACITY	VS006	Full Load	Part Load
COOLING BTU/HR	7,000	–
COOLING EER	18.6	–
HEATING BTU/HR	4,900	–
HEATING COP	3.4	–

MODEL	VS009
CAPACITY	VS009	Full Load	Part Load
COOLING BTU/HR	10,900	–
COOLING EER	17.4	–
HEATING BTU/HR	8,500	–
HEATING COP	3.6	–

MODEL	VS012
CAPACITY	VS012	Full Load	Part Load
COOLING BTU/HR	11,900	–
COOLING EER	18.1	–
HEATING BTU/HR	9,400	–
HEATING COP	3.6	–

MODEL	VS015
CAPACITY	VS015	Full Load	Part Load
COOLING BTU/HR	16,000	–
COOLING EER	22.3	–
HEATING BTU/HR	11,500	–
HEATING COP	4.3	–

MODEL	VS018
CAPACITY	VS018	Full Load	Part Load
COOLING BTU/HR	21,700	–
COOLING EER	22.2	–
HEATING BTU/HR	15,400	–
HEATING COP	4.0	–

MODEL	VT024
CAPACITY	VT024	Full Load	Part Load
COOLING BTU/HR	25,800	19,300
COOLING EER	18.6	24.2
HEATING BTU/HR	19,400	14,800
HEATING COP	4.0	3.8

MODEL	VT030
CAPACITY	VT030	Full Load	Part Load
COOLING BTU/HR	32,200	25,500
COOLING EER	18.4	25.8
HEATING BTU/HR	24,300	20,000
HEATING COP	3.8	4.2

MODEL	VT036
CAPACITY	VT036	Full Load	Part Load
COOLING BTU/HR	37,400	28,500
COOLING EER	17.7	25.2
HEATING BTU/HR	29,500	22,900
HEATING COP	3.9	4.2

MODEL	VT042
CAPACITY	VT042	Full Load	Part Load
COOLING BTU/HR	45,900	35,100
COOLING EER	18.5	26.0
HEATING BTU/HR	32,400	25,500
HEATING COP	3.9	4.2

MODEL	VT048
CAPACITY	VT048	Full Load	Part Load
COOLING BTU/HR	50,300	37,400
COOLING EER	18.8	26.6
HEATING BTU/HR	38,500	30,800
HEATING COP	4.0	4.6

MODEL	VT060
CAPACITY	VT060	Full Load	Part Load
COOLING BTU/HR	60,900	46,600
COOLING EER	17.6	23.6
HEATING BTU/HR	46,300	36,600
HEATING COP	3.8	4.2

MODEL	VT072
CAPACITY	VT072	Full Load	Part Load
COOLING BTU/HR	68,900	55,300
COOLING EER	15.8	21.1
HEATING BTU/HR	51,800	44,000
HEATING COP	3.4	3.9
