Ron & Lynda’s Healthy Canadian Duplex

Forest, Ontario, CA
ron and lyndas canadian duplex front 6a74ee77
ron and lyndas canadian duplex photograph 09e347cc

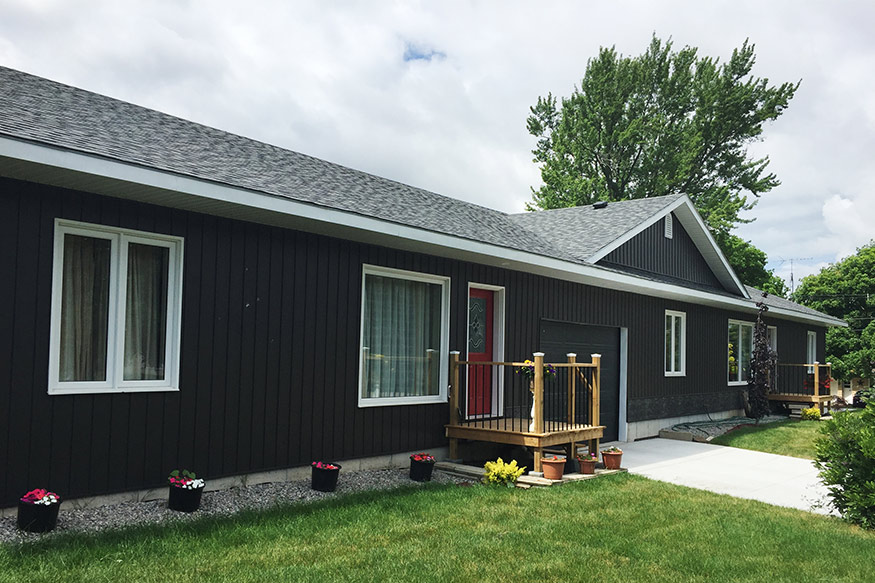

ron and lyndas canadian duplex second side 47fa6a8c
ron and lyndas canadian duplex units b55a36e0

Project Details

construction new 5212a03d
New Construction
loop vertical 8d93530d
Vertical Loop
system forced air 3c8e2238
Forced Air
dimensions cda9e049
3744 sq. ft.

Project Description

Ron and Lynda wanted to build a new, energy-efficient, healthy duplex for their retirement years. The entire home has double 2×4 outside stud walls with an R 38.5 insulation level, R 75 Cellulose in the attic, R28 insulation on the crawlspace and basement walls to the floor. The home also includes large, energy-efficient windows with Low-E Argon to provide a beautiful view and bright living space. The duplex features an open concept floor plan with a 1,280 square foot two-bedroom rental unit, single car garage, and a 1,570 square foot two-bedroom unit for the homeowners, including an office and one-and-a-half car garage. Each unit boasts large closets and an all-on-one-floor living area. The rental unit includes an insulated crawl space, while the main unit features a full basement for the mechanical equipment, a workshop and storage space. The couple chose to install geothermal because of its energy efficiency and long-term utility savings.

Installation Details

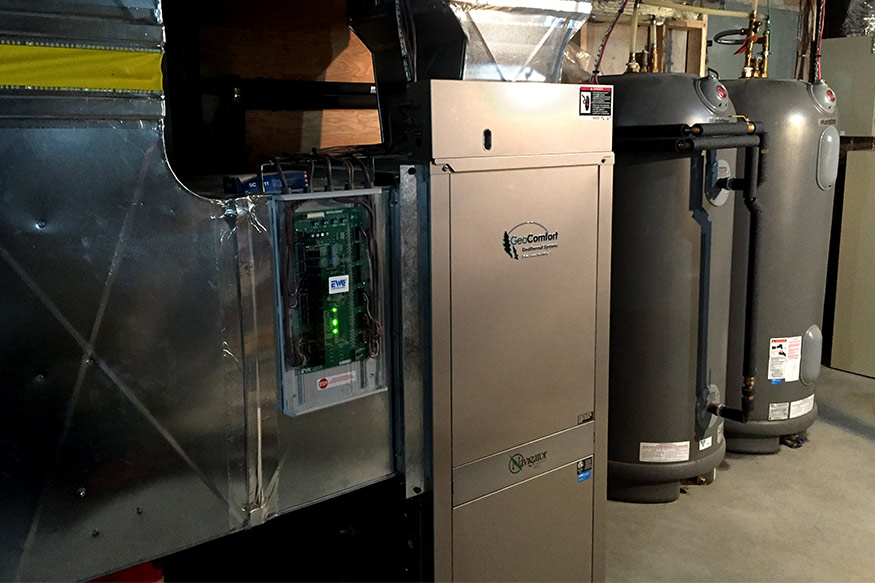

Along with the GeoComfort system, the home also utilizes a Geo-Flo Magna ECM flow center, EWC Zone control system, 105-gallon Marathon Preheat water tank, 105-gallon Marathon Water Heater and an Energy Recovery Ventilation (ERV) system. The loops are installed in eight 80’ vertical boreholes. The geothermal unit and the ERV run on low continuously to maintain a healthy and fresh living space. Since Ontario has the higher electric rates and the home is on Time-of-Use rates, they installed a timer on the water heater to only heat water in off-peak times.

Equipment Installed

Savings

Savings estimates not available.

Partners Involved

Qualified GeoComfort Installer
