ZS/ZT | Compact Horizontal Packaged

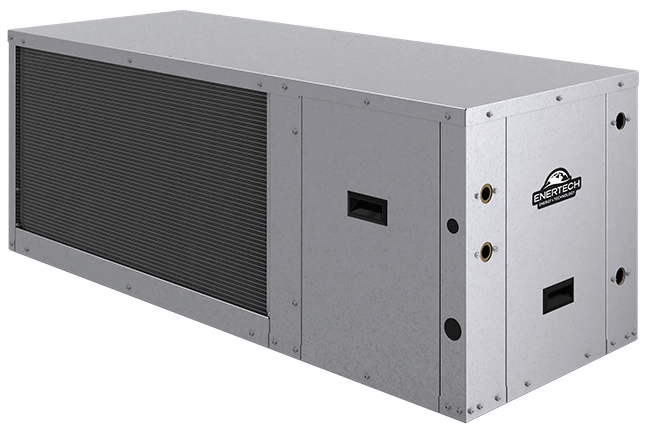

The GeoComfort ZS/ZT compact horizontal packaged heat pumps fit between standard 24" trussing. The small size of these heat pumps makes them perfect for replacing older water-source heat pumps. Additionally, these compact systems have the option of domestic hot water assist. As a lighter unit with high efficiencies, the ZS/ZT models are ideal for housing developments, classrooms, office buildings, etc.

COMPATIBLE WITH THE EPIC CONNECTED CONTROLS

Our proprietary EPIC connected controls provide unprecedented insights into the usage, efficiency, and performance of your geothermal system – all in real time! See how to maximize your home’s comfort with EPIC.

More About Epic Connected Controls

Warranty Details

FEATURES

Available sizes: 0.5 - 6 tons
Efficiencies: Up to 29.8 EER / 4.4 COP
Hot water assist
UL GREENGUARD Gold certified cabinet insulation
Heavy gauge steel
Single- and two-stage compressor options
Variable-speed fan
Temperature system as part of system safeties
All-aluminum microchannel air coil

Learn More

Document Downloads:

Model Specifications:

Model	ZS006 208/230V
CAPACITY	ZS006 208/230V	Full Load	Part Load
COOLING BTU/HR	6,900	-
COOLING EER	17.1	-
HEATING BTU/HR	5,200	-
HEATING COP	3.5	-

Model	ZS006 265/115V
CAPACITY	ZS006 265/115V	Full Load	Part Load
COOLING BTU/HR	6,500	-
COOLING EER	16.2	-
HEATING BTU/HR	5,000	-
HEATING COP	3.3	-

Model	ZS009 208/230V
CAPACITY	ZS009 208/230V	Full Load	Part Load
COOLING BTU/HR	9,600	-
COOLING EER	16.7	-
HEATING BTU/HR	7,500	-
HEATING COP	3.5	-

Model	ZS009 265/115V
CAPACITY	ZS009 265/115V	Full Load	Part Load
COOLING BTU/HR	9,200	-
COOLING EER	15.9	-
HEATING BTU/HR	7,100	-
HEATING COP	3.3	-

MODEL	ZS012
CAPACITY	ZS012	Full Load	Part Load
COOLING BTU/HR	11,300	-
COOLING EER	14.1	-
HEATING BTU/HR	9,500	-
HEATING COP	3.2	-

MODEL	ZS015
CAPACITY	ZS015	Full Load	Part Load
COOLING BTU/HR	15,300	-
COOLING EER	19.2	-
HEATING BTU/HR	11,100	-
HEATING COP	3.8	-

MODEL	ZS017
CAPACITY	ZS017	Full Load	Part Load
COOLING BTU/HR	18,300	-
COOLING EER	18.6	-
HEATING BTU/HR	13,400	-
HEATING COP	3.7	-

MODEL	ZS018
CAPACITY	ZS018	Full Load	Part Load
COOLING BTU/HR	20,500	-
COOLING EER	18.2	-
HEATING BTU/HR	14,400	-
HEATING COP	3.6	-

MODEL	ZS024
CAPACITY	ZS024	Full Load	Part Load
COOLING BTU/HR	25,200	-
COOLING EER	18.7	-
HEATING BTU/HR	18,600	-
HEATING COP	3.7	-

MODEL	ZS030
CAPACITY	ZS030	Full Load	Part Load
COOLING BTU/HR	30,300	-
COOLING EER	19.1	-
HEATING BTU/HR	21,900	-
HEATING COP	3.7	-

MODEL	ZS036
CAPACITY	ZS036	Full Load	Part Load
COOLING BTU/HR	37,600	-
COOLING EER	18.1	-
HEATING BTU/HR	27,800	-
HEATING COP	3.7	-

MODEL	ZS042
CAPACITY	ZS042	Full Load	Part Load
COOLING BTU/HR	43,400	-
COOLING EER	19.8	-
HEATING BTU/HR	32,800	-
HEATING COP	3.9	-

MODEL	ZS048
CAPACITY	ZS048	Full Load	Part Load
COOLING BTU/HR	48,500	-
COOLING EER	17.8	-
HEATING BTU/HR	38,500	-
HEATING COP	3.6	-

MODEL	ZS060
CAPACITY	ZS060	Full Load	Part Load
COOLING BTU/HR	60,500	-
COOLING EER	17.8	-
HEATING BTU/HR	49,200	-
HEATING COP	3.8	-

MODEL	ZS072
CAPACITY	ZS072	Full Load	Part Load
COOLING BTU/HR	70,600	-
COOLING EER	17.2	-
HEATING BTU/HR	57,400	-
HEATING COP	3.5	-

MODEL	ZT024
CAPACITY	ZT024	Full Load	Part Load
COOLING BTU/HR	26,800	20,700
COOLING EER	19.8	28.8
HEATING BTU/HR	18,100	14,900
HEATING COP	4.0	4.3

MODEL	ZT030
CAPACITY	ZT030	Full Load	Part Load
COOLING BTU/HR	32,000	24,800
COOLING EER	18.0	24.9
HEATING BTU/HR	22,600	18,700
HEATING COP	3.7	4.0

MODEL	ZT036
CAPACITY	ZT036	Full Load	Part Load
COOLING BTU/HR	38,200	28,900
COOLING EER	19.9	29.8
HEATING BTU/HR	27,600	21,200
HEATING COP	4.1	4.4

MODEL	ZT042
CAPACITY	ZT042	Full Load	Part Load
COOLING BTU/HR	42,600	33,100
COOLING EER	19.1	26.2
HEATING BTU/HR	31,500	25,900
HEATING COP	3.7	4.0

MODEL	ZT048
CAPACITY	ZT048	Full Load	Part Load
COOLING BTU/HR	49,800	39,700
COOLING EER	18.3	26.6
HEATING BTU/HR	37,900	29,600
HEATING COP	3.9	4.3

MODEL	ZT060
CAPACITY	ZT060	Full Load	Part Load
COOLING BTU/HR	61,200	47,300
COOLING EER	18.7	26.9
HEATING BTU/HR	48,100	34,200
HEATING COP	3.9	4.1

MODEL	ZT072
CAPACITY	ZT072	Full Load	Part Load
COOLING BTU/HR	70,400	57,100
COOLING EER	18.0	25.2
HEATING BTU/HR	57,900	47,600
HEATING COP	3.8	4.2
