YT

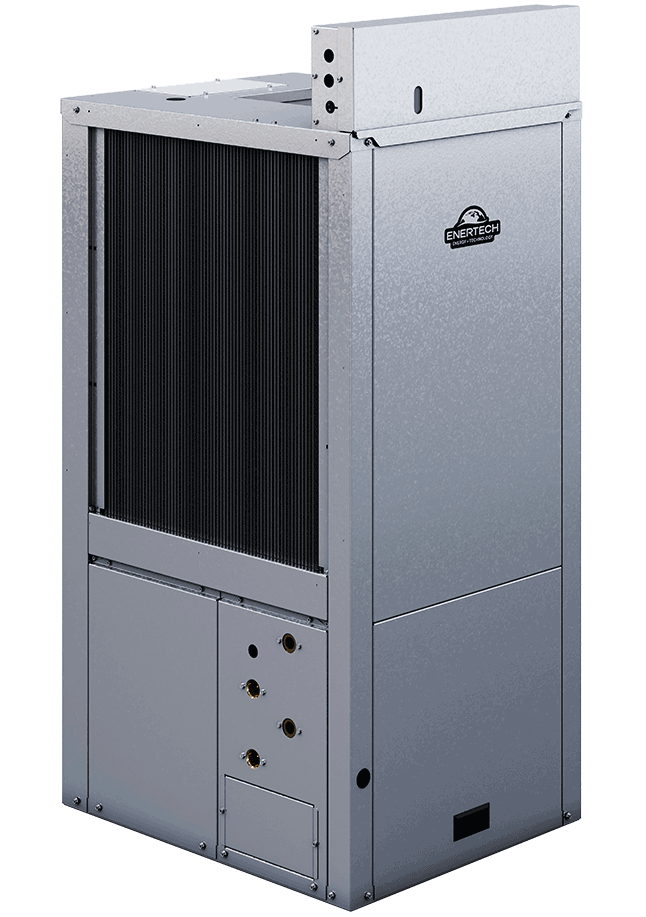

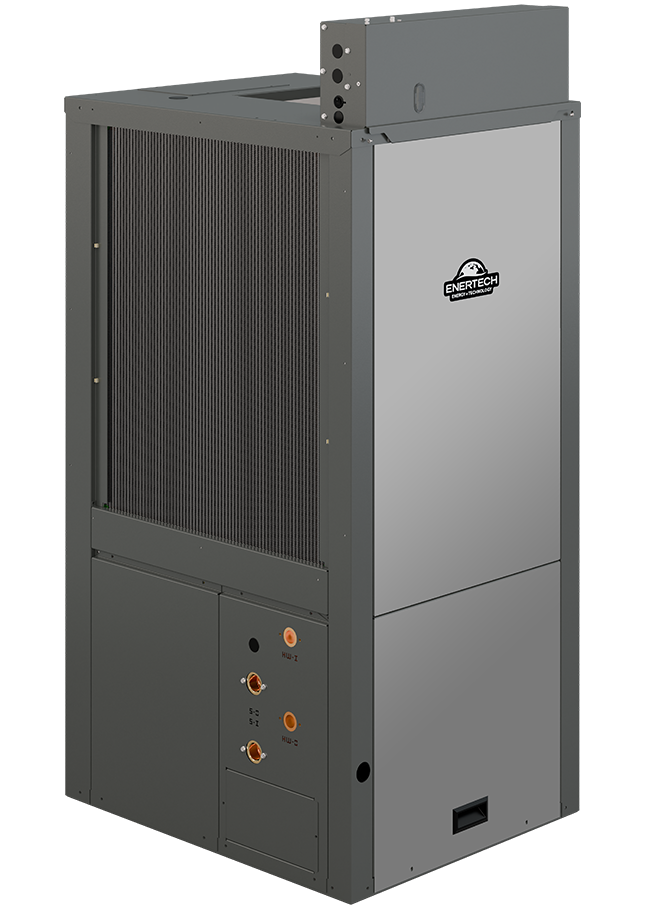

YT | Multi-Position Vertical Packaged

The GeoComfort YT multi-position vertical packaged heat pumps are a fit for applications that require ducted, forced air heating and cooling. These multi-positional, vertical packaged geothermal systems have the option of domestic hot water assist. With our highest efficiencies, these systems are ideal for housing developments, office buildings, or sections of a larger commercial building.

COMPATIBLE WITH THE EPIC CONNECTED CONTROLS

Our proprietary EPIC connected controls provide unprecedented insights into the usage, efficiency, and performance of your geothermal system – all in real time! See how to maximize your home’s comfort with EPIC.

More About Epic Connected Controls

Warranty Details

FEATURES

Available sizes: 2 - 6 tons
Efficiencies: Up to 31.3 EER / 5.1 COP
Hot water assist
UL GREENGUARD Gold certified cabinet insulation
Heavy gauge steel
Two-stage compressor
Variable-speed fan
Temperature sensor as part of system safeties
All-aluminum microchannel air coil

Learn More

Document Downloads:

Model Specifications:

MODEL	YT024
CAPACITY	YT024	Full Load	Part Load
COOLING BTU/HR	27,100	21,400
COOLING EER	19.9	28.2
HEATING BTU/HR	19,000	15,200
HEATING COP	4.3	4.8

MODEL	YT036
CAPACITY	YT036	Full Load	Part Load
COOLING BTU/HR	41,200	31,500
COOLING EER	20.9	31.3
HEATING BTU/HR	29,100	23,300
HEATING COP	4.5	5.1

MODEL	YT048
CAPACITY	YT048	Full Load	Part Load
COOLING BTU/HR	53,300	42,600
COOLING EER	20.2	29.6
HEATING BTU/HR	39,900	32,000
HEATING COP	4.3	4.9

MODEL	YT060
CAPACITY	YT060	Full Load	Part Load
COOLING BTU/HR	64,300	50,000
COOLING EER	19.3	28.0
HEATING BTU/HR	49,200	37,700
HEATING COP	4.1	4.6

MODEL	YT072
CAPACITY	YT072	Full Load	Part Load
COOLING BTU/HR	71,900	58,500
COOLING EER	18.0	24.8
HEATING BTU/HR	56,200	45,800
HEATING COP	3.8	4.4
