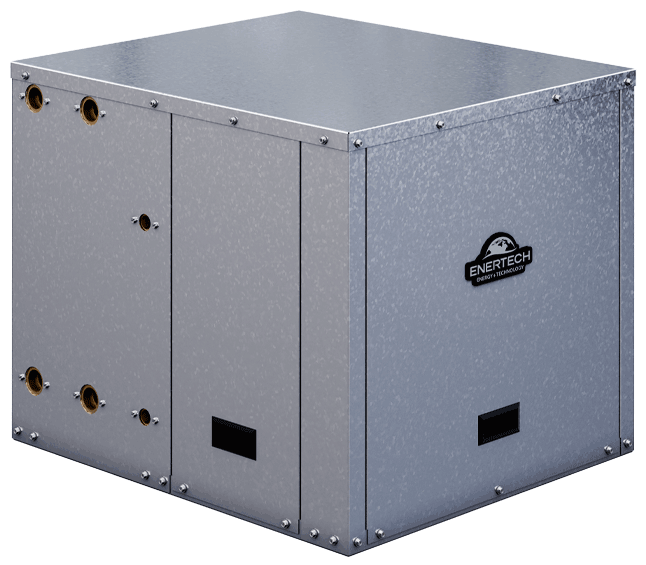

WD | Single-Stage Water-to-Water

et wd commercial featured 88df187f
GeoComfort WD single-stage water-to-water heat pumps create heated or chilled water for use in a variety of heating and cooling applications, including radiant floor heating. These systems are available in a wide tonnage range and include an option for a factory-installed desuperheater on the 10-ton version. The WD heat pumps can be used to supply hot or cold water for a variety of applications, including apartments, offices, schools, etc.

COMPATIBLE WITH ENERTECH’S *NEW* HYDRONIC AIR HANDLER & CASED COIL

Enertech’s line of Hydronic air handlers and cased coils are a perfect match for our water-to-water units. Maximize comfort and quality by pairing the two together in your next project.
FEATURES
  • Available sizes: 10–30 tons
  • Efficiencies: Up to 15.2 EER / 3.3 COP
  • Optional hot water assist
  • UL GREENGUARD Gold certified cabinet insulation
  • Heavy gauge steel
  • Tandem scroll staged compressors
  • High and low access valves
Document Downloads:
Model Specifications:

WD120

Model WD120
CAPACITY Full Load Part Load
COOLING BTU/HR 108,600
COOLING EER 14.4
HEATING BTU/HR 99,400
HEATING COP 2.8

WD240

Model WD240
CAPACITY Full Load Part Load
COOLING BTU/HR 240,700
COOLING EER 15.2
HEATING BTU/HR 222,400
HEATING COP 3.3

WD360

Model WD360
CAPACITY Full Load Part Load
COOLING BTU/HR 316,500
COOLING EER 14.6
HEATING BTU/HR 318,000
HEATING COP 3.3
