VS/VT

VS/VT | Compact Vertical Packaged

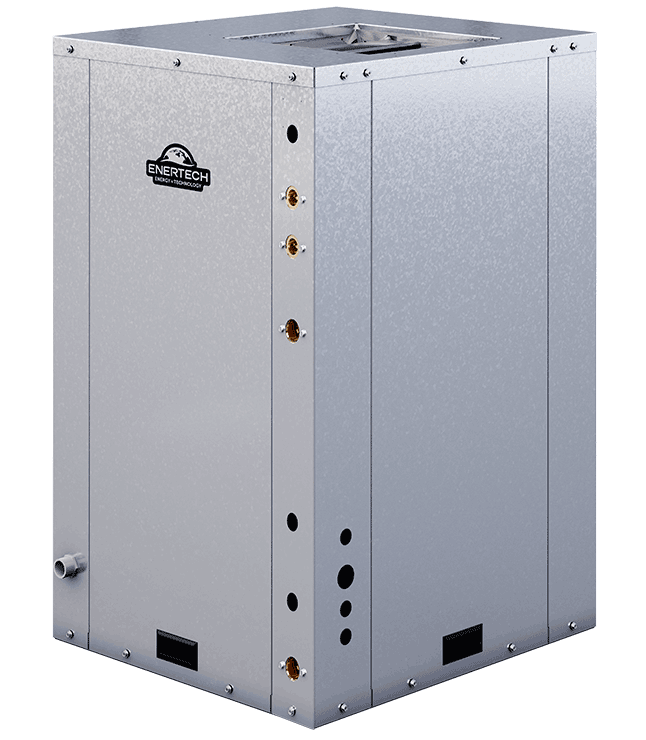

The GeoComfort VS/VT compact vertical packaged heat pumps are a fit for applications that require ducted, forced air heating and cooling. These units fit well in small places and have the option of a factory-installed desuperheater. The VS/VT is a smaller version of the YT. These systems are ideal for residential developments, military bases, sections of a larger commercial building, or offices.

Warranty Details

FEATURES

Available sizes: 0.5 to 6 tons
Efficiencies: Up to 27.2 EER / 4.3 COP
Hot water assist
UL GREENGUARD Gold certified cabinet insulation
Heavy gauge steel
Single- and two-stage compressor options
Variable-speed fan standard on VT and optional on VS
Temperature sensor as part of system safeties
All-aluminum microchannel air coil

Learn More

Document Downloads:

Model Specifications:

MODEL	VS006
CAPACITY	VS006	Full Load	Part Load
COOLING BTU/HR	7,200	-
COOLING EER	18.6	-
HEATING BTU/HR	5,600	-
HEATING COP	3.7	-

MODEL	VS009
CAPACITY	VS009	Full Load	Part Load
COOLING BTU/HR	10,900	-
COOLING EER	17.4	-
HEATING BTU/HR	8,500	-
HEATING COP	3.6	-

MODEL	VS012
CAPACITY	VS012	Full Load	Part Load
COOLING BTU/HR	11,900	-
COOLING EER	18.1	-
HEATING BTU/HR	9,400	-
HEATING COP	3.6	-

MODEL	VS015
CAPACITY	VS015	Full Load	Part Load
COOLING BTU/HR	16,000	-
COOLING EER	19.8	-
HEATING BTU/HR	11,600	-
HEATING COP	4.1	-

MODEL	VS018
CAPACITY	VS018	Full Load	Part Load
COOLING BTU/HR	21,700	-
COOLING EER	22.2	-
HEATING BTU/HR	15,400	-
HEATING COP	4.0	-

MODEL	VS024
CAPACITY	VS024	Full Load	Part Load
COOLING BTU/HR	26,000	-
COOLING EER	19.7	-
HEATING BTU/HR	19,400	-
HEATING COP	4.0	-

MODEL	VS030
CAPACITY	VS030	Full Load	Part Load
COOLING BTU/HR	30,100	-
COOLING EER	18.5	-
HEATING BTU/HR	22,300	-
HEATING COP	3.9	-

MODEL	VS036
CAPACITY	VS036	Full Load	Part Load
COOLING BTU/HR	37,800	-
COOLING EER	18.0	-
HEATING BTU/HR	30,200	-
HEATING COP	3.9	-

MODEL	VS041
CAPACITY	VS041	Full Load	Part Load
COOLING BTU/HR	38,700	-
COOLING EER	17.1	-
HEATING BTU/HR	31,100	-
HEATING COP	3.6	-

MODEL	VS042
CAPACITY	VS042	Full Load	Part Load
COOLING BTU/HR	43,600	-
COOLING EER	18.6	-
HEATING BTU/HR	32,000	-
HEATING COP	3.8	-

MODEL	VS048
CAPACITY	VS048	Full Load	Part Load
COOLING BTU/HR	50,500	-
COOLING EER	17.6	-
HEATING BTU/HR	39,600	-
HEATING COP	3.6	-

MODEL	VS060
CAPACITY	VS060	Full Load	Part Load
COOLING BTU/HR	60,000	-
COOLING EER	16.9	-
HEATING BTU/HR	46,900	-
HEATING COP	3.6	-

MODEL	VS072
CAPACITY	VS072	Full Load	Part Load
COOLING BTU/HR	70,100	-
COOLING EER	15.1	-
HEATING BTU/HR	53,200	-
HEATING COP	3.3	-

MODEL	VT024
CAPACITY	VT024	Full Load	Part Load
COOLING BTU/HR	25,800	19,300
COOLING EER	18.6	24.2
HEATING BTU/HR	19,400	14,800
HEATING COP	4.0	3.8

MODEL	VT030
CAPACITY	VT030	Full Load	Part Load
COOLING BTU/HR	32,200	25,500
COOLING EER	18.4	25.8
HEATING BTU/HR	24,300	20,000
HEATING COP	3.8	4.2

MODEL	VT036
CAPACITY	VT036	Full Load	Part Load
COOLING BTU/HR	37,400	28,500
COOLING EER	17.7	25.2
HEATING BTU/HR	29,500	22,900
HEATING COP	3.9	4.2

MODEL	VT042
CAPACITY	VT042	Full Load	Part Load
COOLING BTU/HR	45,900	35,100
COOLING EER	18.5	26.0
HEATING BTU/HR	32,400	25,500
HEATING COP	3.9	4.2

MODEL	VT048
CAPACITY	VT048	Full Load	Part Load
COOLING BTU/HR	51,300	39,200
COOLING EER	18.9	27.2
HEATING BTU/HR	38,300	30,200
HEATING COP	3.9	4.3

MODEL	VT060
CAPACITY	VT060	Full Load	Part Load
COOLING BTU/HR	60,900	46,500
COOLING EER	17.6	23.6
HEATING BTU/HR	46,300	36,600
HEATING COP	3.8	4.2

MODEL	VT072
CAPACITY	VT072	Full Load	Part Load
COOLING BTU/HR	68,900	55,300
COOLING EER	15.8	21.1
HEATING BTU/HR	51,800	44,000
HEATING COP	3.4	3.9
