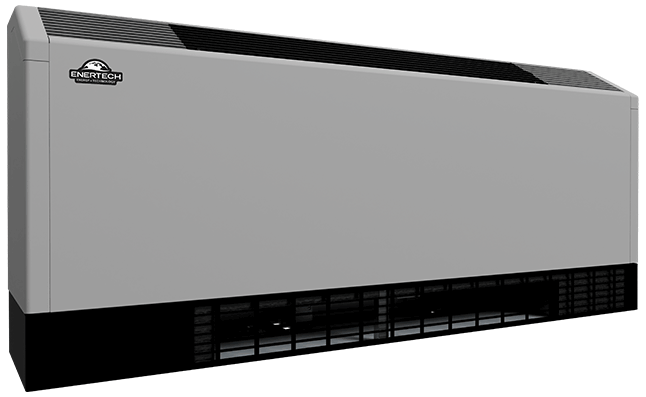

GeoComfort FD console models provide an energy-efficient, ductless heating and cooling solution for spaces where individual, quiet control of the heating and cooling system is important. With small cabinet dimensions, FD systems are a good choice for water loop or geothermal applications and have no through-the-wall penetrations. These systems are ideal for schools, offices, and other buildings where ductwork may not be an option and quiet operation is a priority.
Energy Star Most Efficient 2024
Warranty Details
FEATURES
  • Capacity: 0.75–1.5 tons
  • Efficiencies: UP to 19.4 EER / 5.1 COP
  • Voltages: 208-230/60/1, 265/60/1, 115/60/1
  • Coaxial heat exchanger
  • Built-in freeze protection
  • Heavy gauge steel
  • Single-stage compressor
  • DDC controls optional
  • Standard and extended range options available
  • Internal pump optional
  • Internal two-way valve
Learn More
Document Downloads:
Model Specifications:

FD09

Model Type Cooling with PSC Blower Heating with PSC Blower Cooling with ECM Blower Heating with ECM Blower
BTU EER BTU EER BTU EER BTU EER
FD09 Water Loop 8,500 3.3 11,400 4.5 8,600 14.0 11,300 4.6
Ground Water 9,500 21.5 9,500 3.8 9,600 23.0 9,400 4.0
Ground Loop 8,800 15.0 7,300 3.2 8,900 16.5 7,200 3.3

FD12

Model Type Cooling with PSC Blower Heating with PSC Blower Cooling with ECM Blower Heating with ECM Blower
BTU EER BTU EER BTU EER BTU EER
FD12 Water Loop 11,300 13.0 14,300 4.5 11,600 13.5 14,500 4.5
Ground Water 13,000 19.0 11,800 3.9 13,100 20.0 11,900 3.9
Ground Loop 11,800 15.0 9,200 3.3 12,200 15.5 9,200 3.3

FD15

Model Type Cooling with PSC Blower Heating with PSC Blower Cooling with ECM Blower Heating with ECM Blower
BTU EER BTU EER BTU EER BTU EER
FD15 Water Loop 13,700 12.9 17,500 4.7 13,800 13.2 18,000 4.8
Ground Water 15,700 18.9 14,600 4.0 16,000 19.4 14,700 4.0
Ground Loop 14,500 14.8 11,400 3.3 14,700 15.0 11,500 3.3

FD18

Model Type Cooling with PSC Blower Heating with PSC Blower Cooling with ECM Blower Heating with ECM Blower
BTU EER BTU EER BTU EER BTU EER
FD18 Water Loop – – – – 17,000 13.0 23,000 4.2
Ground Water – – – – 20,000 20.0 19,000 3.8
Ground Loop – – – – 18,000 15.0 15,000 3.3
