FB | Compact Belt Drive Water-to-Air

Features
Documents
Specs

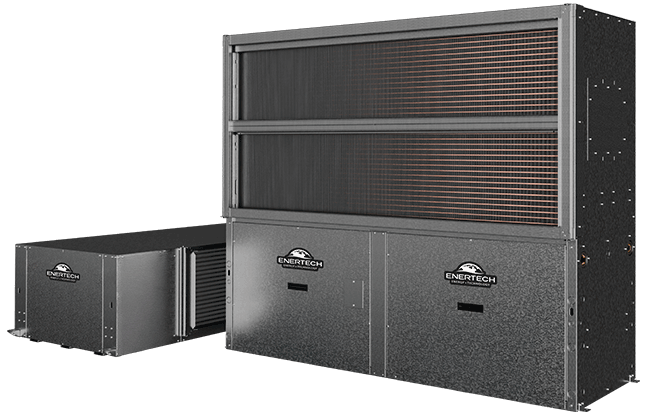

et fb commercial featured c628bd90
GeoComfort FB compact belt drive water-to-air systems offer a wide range of units for almost any installation. The FB models offer an extended range refrigerant circuit, capable of geothermal and boiler-tower applications. FB units can be used to meet the HVAC needs of large buildings, including offices, schools, public institutions, etc.
Energy Star Most Efficient 2024
Warranty Details
FEATURES
  • Capacity: 6–25 tons
  • Efficiencies: Up to 20.0 EER / 5.1 COP
  • Voltages: 208-230/60/3, 460/60/3, 575/60/3
  • Coaxial heat exchanger
  • Built-in freeze protection
  • Heavy gauge steel
  • Dual scroll compressors
  • DDC controls optional
  • Water-side economizer optional
  • Standard and extended range options available
  • Belt drive blowers with various configurations
  • Stainless steel drain pan optional
Learn More
Document Downloads:
Model Specifications:

FB72

Model Motor Type Water Loop Heat Pump Ground Water Heat Pump Ground Loop Heat Pump
Cooling 86°F Heating 68°F Cooling 59°F Heating 50°F Full Cooling 77°F Full Heating 32°F
BTU EER BTU COP BTU EER BTU COP BTU EER BTU COP
FB72 Belt Drive 71,000 14.1 92,300 5.3 77,800 20.5 76,000 4.6 74,100 15.5 58,300 3.8
Belt Drive with VFD 72,000 14.5 91,400 5.4 78,000 21.6 75,000 4.7 75,200 16.3 58,000 3.9

FB96

Model Motor Type Water Loop Heat Pump Ground Water Heat Pump Ground Loop Heat Pump
Cooling 86°F Heating 68°F Cooling 59°F Heating 50°F Full Cooling 77°F Full Heating 32°F
BTU EER BTU COP BTU EER BTU COP BTU EER BTU COP
FB96 Belt Drive 101,000 15.3 122,800 5.0 110,500 22.3 99,500 4.4 101,700 16.3 76,600 3.6
Belt Drive with VFD 101,700 15.5 123,000 5.1 110,800 23.0 100,000 4.4 102,000 16.5 76,800 3.6

FB120

Model Motor Type Water Loop Heat Pump Ground Water Heat Pump Ground Loop Heat Pump
Cooling 86°F Heating 68°F Cooling 59°F Heating 50°F Full Cooling 77°F Full Heating 32°F
BTU EER BTU COP BTU EER BTU COP BTU EER BTU COP
FB120 Belt Drive 122,000 13.7 156,000 4.6 128,000 18.1 127,000 4.0 124,500 14.3 98,500 3.4
Belt Drive with VFD 124,000 13.9 156,000 4.7 128,500 18.6 127,000 4.1 125,000 14.8 98,500 3.5
